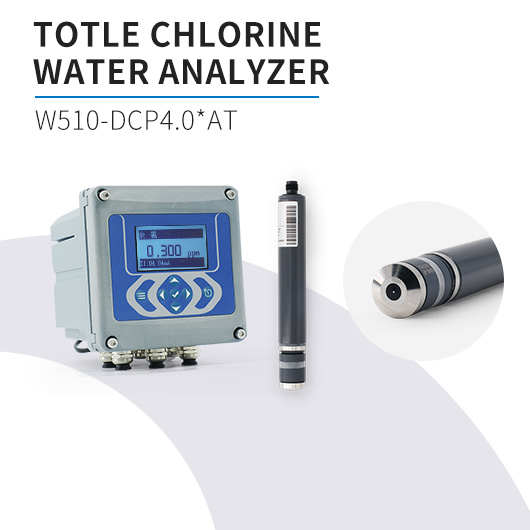

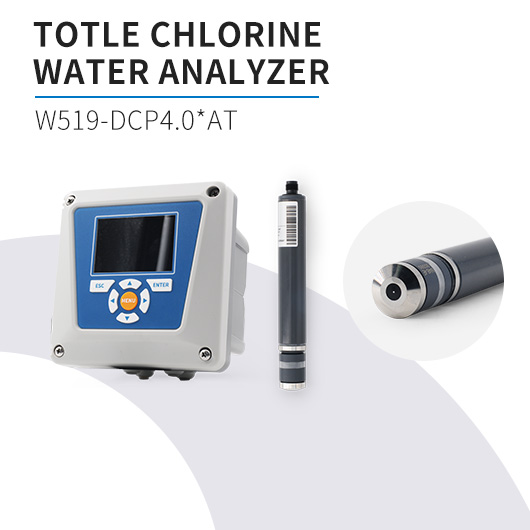

Online Total Chlorine Analyzer with CP4.0 Sensor for Drinking Water
Working Principle
The entire measurement system mainly consists of two parts: the instrument and the sensor. The instrument displays the total chlorine value (main measured value), the pH value of the aqueous solution (a pH electrode needs to be selected optionally), and the working status. It outputs signals such as analog quantity, digital quantity, and switch quantity. The sensor is of the original imported RG brand from Germany and works on the principle of the film-covered three (dual) - electrode constant current method, with the characteristics of anti - interference and anti - pollution. The sensor is not restricted by water quality conditions and can be applied in various industries.
Application Fields
Tap water: 0 - 2mg/L
Swimming pool water: 0 - 5mg/L for the measurement of cyanuric acid
Medical water: 0 - 0.5mg/L; conductivity as low as 10μS/cm
Sewage treatment: 0 - 20mg/L
Seawater: conductivity up to 50mS/cm
High - salt seawater: brine or seawater with a concentration greater than 3.5% (>50mS), and the salt content can be up to approximately 26%
Dual-channel access for configuration according to requirements.
Enables plug - and - play of sensors, making electrode installation and replacement quick and convenient.
The interface has a simple operation, reducing operational errors and ensuring reliable results.
Visual operation on the LCD screen with a rich and comprehensive interface.
Equipped with multiple data output methods such as 4 - 20mA and MODBUS RS485.
The controller supports wall - mounting / panel - mounting / pipe - clip mounting.
Made of aluminum alloy, it has high strength, oxidation resistance, and corrosion resistance, enhancing its texture and market attractiveness.
Technical Parameters
Specification | Detailed information | |
Measurement | Measurement Parameters | Total Chlorine, pH (optional) |
Measuring Ranges | 0.005～0.500mg/L; 0.005～2.000mg/L; 0.05～5.00mg/L;0.05～10.00mg/L; 0.05～20.00mg/L | |
Lower Limit of Measurement | 0.005mg/L(depending on the electrode) | |
Resolution | 0.001mg/L（depending on the measuring range） | |
Accuracy (@25℃, pH 7.2) | In the measurement range of 0 - 1ppm, when calibrated at 0.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one） | |
In the measurement range of 1 - 2ppm, when calibrated at 1.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one) | ||
In the measurement range of 0 - 10ppm, when calibrated at 5.0ppm, the error is ±2% of the measured value or ±0.3ppm.（take the larger one) | ||
In the measurement range of 10 - 20ppm, when calibrated at 15.0ppm, the error is ±5% of the measured value or ±0.5ppm.（take the larger one) | ||
Response time | T90≈2 - 3 minutes | |
Repeatability | ≤3% | |
Drift | Approximately - 1% per month (after calibration at 25℃ and pH = 7.2) | |
PH range | 4.0 - 12.0 (depending on the electrode) | |
Maintenance Cycle | The replacement cycle of the membrane cap is one year (depending on water quality) | |
Flow rate | In the flow chamber: 250 - 500mL/min | |
Operating temperature | 0 - 45℃ | |
Electrical | Display | LCD liquid - crystal screen |
Power supply | 105～235VAC，50±1Hz/24VDC±5%(DC is optional) | |
Power | ≤12W（including the sensor） | |
Analog Output | Two ways of analog outputs (load resistance < 500Ω) | |
Digital output | RS485 interface, MODBUS RTU protocol | |
Relay output | Three-way relay 5A 250VAC，5A 30VDC | |
Physical prosperities | Material | Bottom shell: Cast aluminum with plastic spray coating Top cover: PA66 + 30GF with paint coating |
Size | 145*145*174mm（H*W*D） | |
Weight | 1.8kg（Not including the sensor） | |
Waterway interface | 2-inch or 3-inch hose （custom made） | |
Ambient performance | Flow rate | In flow chamber：250～500mL/min |
Protection level | IP65 | |
Water pressure | ≤6 bar（matching a pressure - reducing valve with the instrument） | |
Working humidity | <90%，no condensation | |
Working temperature | Instrument：-15℃～50℃；senseor water temperature：0.1℃～45℃ | |
Storage temperature | Instrument：-20°C～60°C；sensor：0.1°C～55°C | |
