Product Information

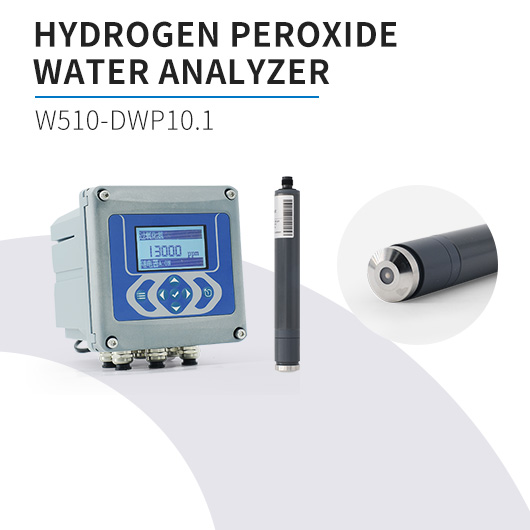

Online Hydrogen Peroxide Analyzer with WP10.1 Sensor for Sea Water
Working Principle
The entire measurement system mainly consists of two parts: the instrument and the sensor. The instrument displays the hydrogen peroxide value (main measured value), the pH value of the aqueous solution (pH electrode needs to be selected optionally), and the working status. It outputs signals such as analog, digital , and switch singals. The sensor is of the original imported RG brand from Germany and works on the principle of the film-covered three (dual) - electrode constant current method, with the characteristics of anti - interference and anti-pollution. The sensor is not restricted by water quality conditions and can be applied in various industries.
Application Fields
Power plants, petrochemical industry, metallurgy and electronics, mining industry, papermaking industry, biological fermentation process, medicine, food and beverage, environmental water treatment, aquaculture, and various other industries.
Functional Features
Dual-channel access, allowing configuration according to requirements.
Enables plug - and - play of sensors, making electrode installation and replacement quick and convenient.
Features a simple - to - operate interface, which reduces the likelihood of operational errors and ensures reliable results.
Visual operation on the LCD screen, with a rich and comprehensive interface content.
Equipped with multiple data output methods, such as 4 - 20mA and MODBUS RS485.
The controller supports wall - mounting / panel - mounting / pipe - clip mounting.
Crafted from aluminum alloy, it offers high strength, oxidation resistance, and corrosion resistance, enhancing its texture and market attractiveness.
Technical Parameters
Specification | Detailed information | |
Measurement | Measurement Parameters | Hydrogen peroxide (pH electrode is optional) |
Measuring Ranges | 0.5～200mg/L; 5～2000mg/L; 50～20000mg/L; 500～50000mg/L; 500～100000mg/L; 500～20,0000mg/L; | |
Lower Limit of Measurement | 0.1mg/L | |
Resolution | 0.1～100mg/L（depending on the measuring range） | |
Accuracy (@25℃, pH 7.2) | ±2% – ±5% or ±0.5mg/L (take the larger value depending on the measurement range) | |
Response time | T90≈ 8 minutes | |
Repeatability | ≤3% | |
Drift | Approximately - 1% per month (after calibration at 25℃ and pH = 7.2) | |
PH range | 2 - 11 (depending on the electrode) | |
Maintenance Cycle | The replacement cycle of the membrane cap is one year (depending on water quality) | |
Flow rate | In the flow chamber: 250 - 500mL/min | |
Operating temperature | 0 - 45℃ | |
Electrical | Display | LCD liquid - crystal screen |
Power supply | 105～235VAC，50±1Hz/24VDC±5%(DC is optional) | |
Power | ≤12W（including the sensor） | |
Analog Output | Two ways of analog outputs (load resistance < 500Ω) | |
Digital output | RS485 interface, MODBUS RTU protocol | |
Relay output | Three-way relay 5A 250VAC，5A 30VDC | |
Physical prosperities | Material | Bottom shell: Cast aluminum with plastic spray coating Top cover: PA66 + 30GF with paint coating |
Size | 145*145*174mm（H*W*D） | |
Weight | 1.8kg（Not including the sensor） | |
Waterway interface | 2-inch or 3-inch hose （custom made） | |
Ambient performance | Flow rate | In flow chamber：250～500mL/min |
Protection level | IP65 | |
Water pressure | ≤6 bar（matching a pressure - reducing valve with the instrument） | |
Working humidity | <90%，no condensation | |
Working temperature | Instrument：-15℃～50℃；senseor water temperature：0.1℃～45℃（0.1°C to 70°C for special applications） | |
Storage temperature | Instrument：-20°C～60°C；sensor：0.1°C～55°C | |
