Product Information

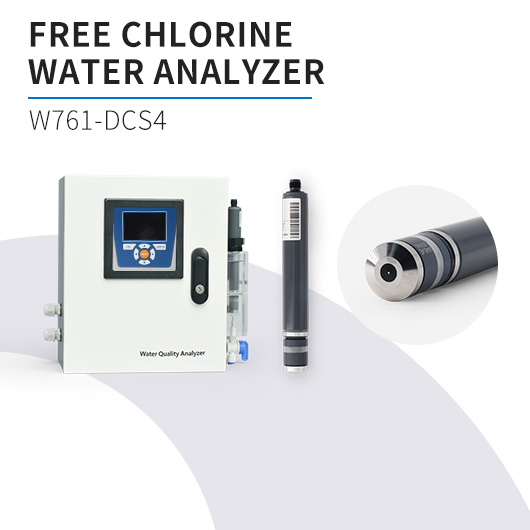

Intelligent Online Free Chlorine Monitor System with CS4 Sensor for Tap Water
Application Fields
Tap water: 0 - 2mg/L;
Swimming pool water: 0 - 5mg/L for the measurement of cyanuric acid;
Medical water: 0 - 0.5mg/L; with a conductivity as low as 10μS/cm;
Sewage treatment: 0 - 20mg/L;
Fruit and vegetable disinfection: 0 - 200mg/L;
Seawater: with a conductivity as high as 50mS/cm;
High - salt seawater: brine or seawater with a concentration greater than 3.5% (>50mS), and the salt content can be up to approximately 26%;
Pipeline disinfection: 0 - 2.5mg/L with a water temperature as high as 70℃;
Industrial water treatment: 0 - 2000mg/L, etc.
Functional Features
Standard - equipped with imported sensors, ensuring accurate measurement and stable performance.
One-key calibration, historical data recording and export.
Standard MODBUS RTU communication protocol.
Dual high-impedance pre-amplifiers: High input impedance, noise-proof, and strong anti-interference ability.
Stable zero-point. Only one-point calibration is required on-site, and multiple calibration methods are also provided.
Human-machine interaction: Menu-based operation structure, allowing users to operate following the on-screen prompts.
Multi - parameter display on the same screen: Simultaneously display the main measured value, pH value (optional), current output, and working status.
Two-way output signals: The software can select from three output modes: 4 - 20mA / 20 - 4mA / 0 - 20mA.
Free setting of the measurement range and alarm upper and lower limits; High and low limit over-range alarm prompts.
Three sets of relay control switches with an adjustable hysteresis control range.
Self - set password: Users can set or modify passwords to avoid misoperation.
Technical Parameters
Specification | Detailed information | |
Measurement | Measurement Parameters | Chlorine , pH (optional) |
Measuring Ranges | 0.005～0.500mg/L;0.005～2.000mg/L;0.05～5.00mg/L;0.05～10.00mg/L;0.05～20.00mg/L;0.5～200.0mg/L0.03～2.5mg/L；20～2000mg/L（special application） | |
Lower Limit of Measurement | 0.005mg/L | |
Resolution | 0.001～1mg/L（depending on the measuring range） | |
Accuracy (@25℃, pH 7.2) | In the measurement range of 0 - 1ppm, when calibrated at 0.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one） | |
In the measurement range of 1 - 2ppm, when calibrated at 1.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one) | ||
In the measurement range of 0 - 10ppm, when calibrated at 5.0ppm, the error is ±2% of the measured value or ±0.3ppm.（take the larger one) | ||
In the measurement range of 10 - 20ppm, when calibrated at 15.0ppm, the error is ±5% of the measured value or ±0.5ppm.（take the larger one) | ||
Response time | T90≈2 minutes | |
Drift | Approximately - 1% per month (after calibration at 25℃ and pH = 7.2) | |
PH range | 4.0 - 12.0 (depending on the electrode) | |
Maintenance Cycle | ≥90days | |
Conductivity range | 10μS/cm - 50mS/cm (Special applications for values > 50mS/cm) | |
Electrical | Display | LCD liquid - crystal screen |
Data Storage | It has an automatic storage function and data protection in case of power failure. In total, it can store 110,000 pieces of data. | |
Power supply | 105～235VAC，50±1Hz/24VDC±5%(DC is optional) | |
Power | ≤3W（including the sensor） | |
Analog Output | Two-way analog output, with optional signals: 4 - 20mA / 20 - 4mA / 0 - 20mA (load resistance < 500Ω) | |
Digital output | RS485 interface, MODBUS RTU protocol | |
Relay output | Three-way relay 3A 250VAC; 3A 28VDC or 120VAC | |
Physical prosperities | Material | Powder - coated steel plate |
Size | 300*250*165mm（H*W*D） | |
Weight | 6kg | |
Waterway interface | 2-inch or 3-inch hose （custom made） | |
Ambient performance | Flow rate | In flow chamber：250～500mL/min |
Protection level | IP43 | |
Water pressure | ≤6 bar（matching a pressure - reducing valve with the instrument） | |
Working humidity | <90%，no condensation | |
Working temperature | Instrument：-15℃～50℃；senseor water temperature：0.1℃～45℃（0.1°C to 70°C for special applications） | |
Storage temperature | Instrument：-20°C～60°C；sensor：0.1°C～55°C | |
