Product Information

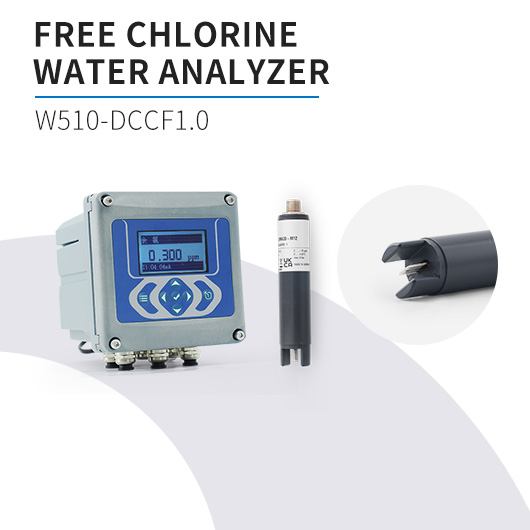

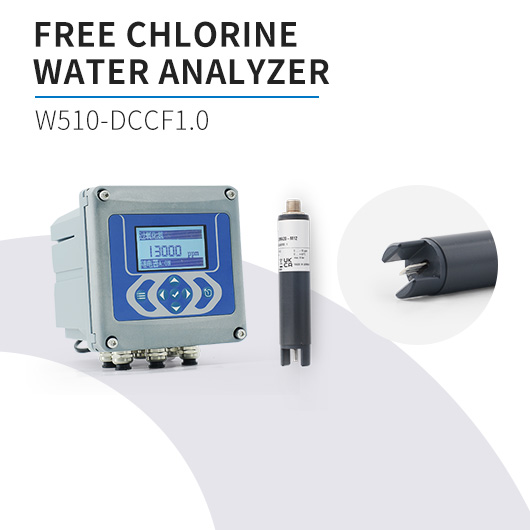

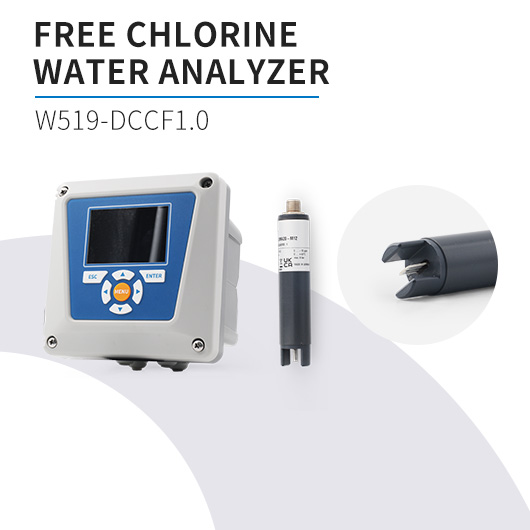

Online Free Chlorine Analyzer with CCF1.0 Sensor for Drinking Water
This analyzer DAW501-CCF1.0 is applied in swimming pools and drinking water plants.
Ambient Conditions
stable pH value
max. temperature: 45 °C
max. pressure: 8 bar
Conductivity: 0.2 to 10 mS/cm
Water Flow: 5~100cm/s
Core Applications
Swimming Pool Water: Public/private pools, water parks—ensures disinfection efficiency while preventing over-chlorination (avoiding skin/eye irritation).
Drinking Water: Municipal water treatment plants, secondary water supply stations, and centralized water systems (hotels, schools, enterprises)—complies with drinking water safety standards by monitoring residual free chlorine levels.
Product Features
lEasy handling
lSignal stability in chlorine-free operation
lShort response time
lShort run-in time
lFor high pressures
lTolerates surfactants
lNo maintenance required
Technical Specifications
| Measurement Parameters | Free chlorine, pH dependent |
| Measuring Ranges | 0.05 ~ 10.00mg/ |
| Resolution | 0.01mg/L |
| Response time | T90≈20 seconds |
| Measuring water temperature | 0... + 45 °C (no ice crystals in the measuring water) |
| Ambient temperature | 0... + 55 °C |
| Temperature compensation | Automatically, through integrated temperature sensor Temperature jumps are to be avoided |
| Max. allowed working pressure - Operation without retaining ring | - 0.5 bar |
| - no pressure surges and/or vibrations | |
Operation with retaining ring in TARAflow FLC | - 8 bar |
| - no pressure surges and/or vibrations (see option 1) | |
| Flow rate(face velocity) | approx. 15 - 100 l/h (15 - 100 cm/s) in TARAflow FLC, low flow is present (see diagram "Slope of TARAeasy CCF1 versus flowrate", p. 5) |
| pH - range | pH 6 – pH 9, observe dissociation curve HOCL (see diagram "Slope of TARAeasy CCF1 versus pH", p. 5) |
| Conductivity | 0.2 to 10 mS/cm |
| Run - in time | approx. 15 min. |
| Response time | T90: approx. 20 sec. |
| Zero point adjustment | Not necessary |
| Protection class | IP68 |
| Material | PVC - U |
FAQ – Frequently Asked Questions
1. Where are your products manufactured?
Our products are proudly designed and manufactured in China, following international quality standards and certified processes.
2. Can you provide OEM/ODM services for international clients?
Yes, we offer customized solutions and private labeling to meet your brand’s needs worldwide.
3. Are your products compliant with international safety and quality standards?
Absolutely. Our products are tested to meet CE, RoHS, and other international certifications.
4. How do you handle shipping and delivery for overseas orders?
We cooperate with major international couriers to ensure fast and reliable delivery to your location.
5. Can I get product samples before placing a large order?
Yes, we provide samples so you can evaluate product quality before committing to bulk orders.
6. What is the typical lead time for production and delivery?
For standard products, we usually ship within 5–7 days after order confirmation. Customized products may take slightly longer.
7. How do you support clients after the purchase?
We offer 24/7 technical support, product guidance, and warranty service to ensure smooth operation.
8. Do you provide support for international clients after purchase?
Yes, we offer remote technical assistance, manuals in English, and prompt solutions to any issues, ensuring smooth use worldwide.
9. How can I place an order if I am located overseas?
You can contact our sales team directly via email or website inquiry. We provide professional guidance throughout the ordering process.
10. Why should I choose your company over other suppliers in China?
We combine over 30 years of manufacturing experience, advanced technology, strict quality control,
and global customer service to deliver reliable, high-quality solutions.
