在线悬浮物分析仪由仪表与传感器组成。其中，仪表配备液晶显示屏，可自动识别参数，并能连接数字 RS485 接口或两线制 4-20mA 信号；浊度传感器采用红外吸收与散射光组合测量法，具体流程为：光源发出的红外光经样品中的浊度物质散射后，由光电探测器将光信号转换为电信号，再通过（模拟与数字）信号处理，得出样品的浊度值。该分析仪适用于水处理厂（取水口、沉淀池）、污水处理厂、工业生产用水及废水处理过程中的在线浊度监测。

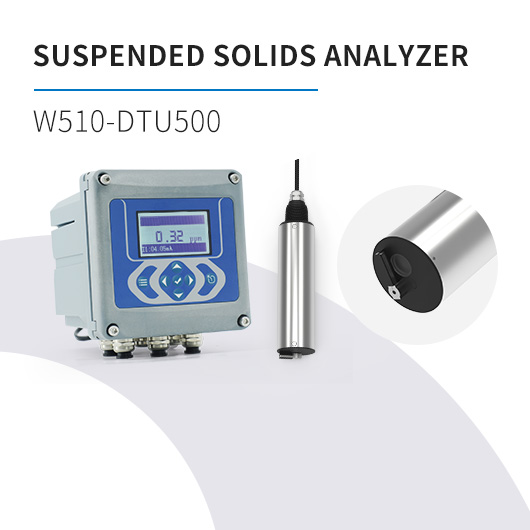

Model W510-DTU500

17172126381

产品详情下载文件

Application Fields

This product is widely used for online turbidity monitoring in links such as the water intake and sedimentation tank of water treatment plants, as well as in links such as sewage treatment plants, water for various industrial production processes, and wastewater treatment processes.

Functional Features

Dual-channel access, configurable as needed.
Enables plug-and-play of sensors, facilitating quick and easy installation and replacement of electrodes.
The interface features a simple operation, which can reduce operational errors and ensure reliable results.
Visual operation on the LCD screen with a rich and comprehensive interface.
It has multiple data output methods including 4 - 20mA and MODBUS RS485.
The transmitter supports wall mounting / panel mounting / pipe clip mounting.
Made of aluminum alloy, it has high strength, oxidation resistance and corrosion resistance, enhancing its texture and market appeal.

Technical Parameters

Specification		Detailed information
Measurement	Measurement Parameters	Turbidity
	Measuring Ranges	0.01-100 NTU,0.01-4000 NTU
	Measuring Ranges	0.01-100 NTU,0.01-4000 NTU
	Resolution	0.1～0.1NTU（depending on the measuring range）
	Accuracy (@25℃, pH 7.2)	Less than ±2% of the measured value or ±0.1 NTU, take the larger one.



	Pressure range	≤0.4Mpa
	Repeatability	±2%
	Flowing rate	≤2.5m/s、8.2ft/s
	Main Materials of the Sensor	Body: SUS316L (ordinary version), titanium alloy (seawater version) Upper and lower covers: POM Cable: PUR
	Operating temperature	0 - 45°C (without freezing)
	Weight	1.65KG
	Protection level	IP68/NEMA6P
	Cable length	The standard length is 10m, which can be extended up to 100m.
Electrical	Display	LCD liquid - crystal screen
	Power supply	105～235VAC，50±1Hz/24VDC±5%(DC is optional)
	Power	≤12W（including the sensor）
	Analog Output	Two ways of analog outputs (load resistance < 500Ω)
	Digital output	RS485 interface, MODBUS RTU protocol
	Relay output	Three-way relay 5A 250VAC，5A 30VDC
	Relay output	Three-way relay 5A 250VAC，5A 30VDC
Physical prosperities	Material	Bottom shell: Cast aluminum with plastic spray coating Top cover: PA66 + 30GF with paint coating
	Size	145145174mm（HWD）
	Weight	1.8kg（Not including the sensor）
	Waterway interface	2-inch or 3-inch hose （custom made）
Ambient performance	Flow rate	In flow chamber：250～500mL/min
	Protection level	IP65
	Water pressure	≤6 bar（matching a pressure - reducing valve with the instrument）
	Working humidity	<90%，no condensation
	Working temperature	Instrument：-15℃～50℃；senseor water temperature：0.1℃～45℃（0.1°C to 70°C for special applications）
	Storage temperature	Instrument：-20°C～60°C；sensor：0.1°C～55°C
