Product Information

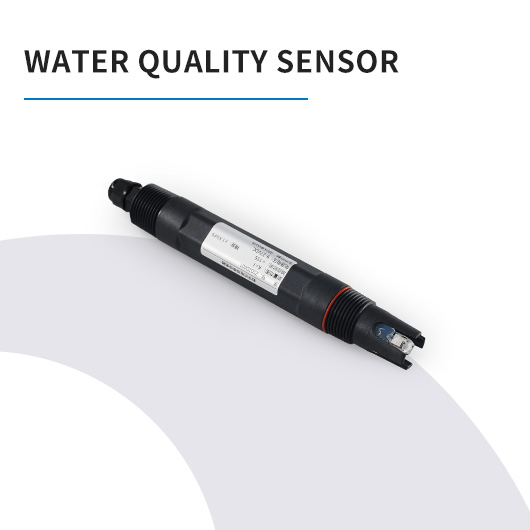

CONDUCTIVITY SENSORS
The conductivity sensor is a glass platinum electrode. The principle ofthe meter measurement is to place two discs (conductivity discs) in the sample solution, and a current can be measured by applying a voltage to the two discs. Generally, the voltage is in the form of a sine wave.
Conductivity is determined by the Ohm's formula based on the voltage and current values.
This product is widely used in the conductivity monitoring of water quality treatment,hydrological monitoring, wastewater treatment, swimming pools, fish ponds, and fertilizers, chemicals, biology, and other fields.
FEATURES
●RS485 transmission interface, MODBUS RTU communication protocol, two-way communication
●Electrode and output isolation design to ensure electrical safety
●Built-in protection circuit to enhance anti-interference ability to adapt to complex environments
●The communication protocol is simple and easy to use, and can output more electrode diagnostic information,
making it more intelligent
●Low-power design to deal with more usage scenarios, and the internal memory can save calibration and setting
information in the event of a power failure;
●PPS housing, with strong corrosion resistance, 3/4 front and rear threads, for easy installation
TECHNICAL PARAMETERS
Conductivity measurement range:0~2.000 μS/cm,0~20.00 μS/cm,
0~200.0 μS/cm,0~2000 μS/cm,
0~20.00 mS/cm,0~200.0 mS/cm
Conductivity resolution: 0.001 μS/cm~0.1 mS/cm
Conductivity measurement accuracy: ±1.5% FS
Electrode constant: Optional 0.01/0.1/1.0/10.0
Temperature range:-10.0~110.0C
Temperature resolution:0.1℃
Temperature accuracy:±0.5℃
Temperature type: Thermistor TH10K
Temperature compensation:Automatic/manual
Data transmission: RS485 MODBUS RTU communication protocol
Working power supply: 9~27VDC,standard 12 VDC (±15%)
lsolation intensity:2500 Vrms
Product power:About 0.5 W
Installation method: 3/4"and rear threads
