Online Stainess Steel Peracetic Acid Transmitter with Touchscreen for Food and Beverage Industry

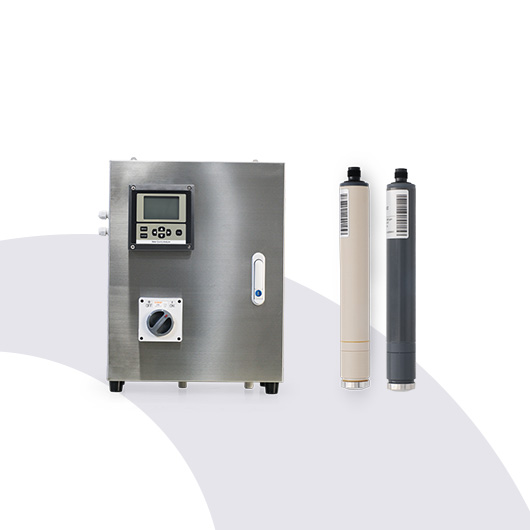

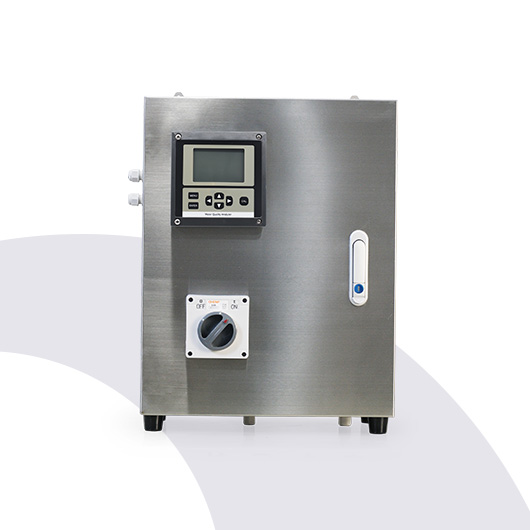

Our Peracetic Acid (PAA) Analyzer is a robust, precision-driven online monitoring solution built with 304 stainless steel for exceptional corrosion resistance—ideal for harsh industrial environments. Available in Regular Temperature (max 45°C) and High Temperature (up to 60°C) models, it delivers accurate PAA concentration measurements via a durable membrane current two-electrode system.

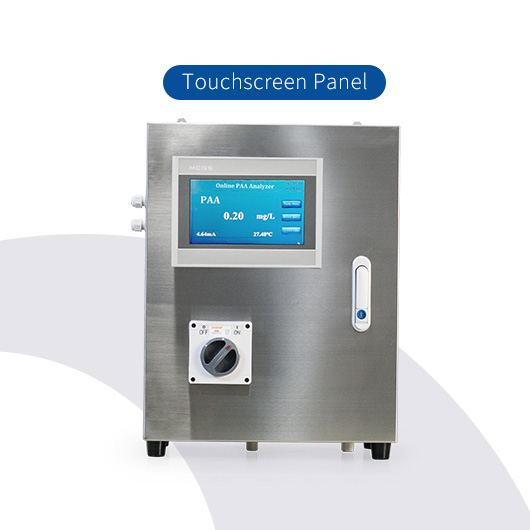

Enhanced with an intuitive touchscreen interface, it simplifies real-time data monitoring, parameter adjustments, and system diagnostics—no complex coding required. With rapid response times, dual-channel flow cells (pH-electrode compatible), and IP68/IP65 protection, it integrates seamlessly via 4-20mA/Modbus RS485 signals. Perfect for food/beverage sanitization, pharmaceutical sterilization, water treatment, and industrial cleaning, this analyzer combines reliability, flexibility, and long-term durability to support critical process monitoring.

Model W781-AF304

Inquire by Email

Consult now

Detail

Precision Monitoring for Peracetic Acid Concentration

Product Introduction

Our Peracetic Acid (PAA) Analyzer is a high-performance online monitoring device engineered to deliver accurate, real-time PAA concentration measurements in liquid systems. Offered in Regular Temperature and High Temperature variants, it combines robust 304 stainless steel construction with advanced detection technology to suit diverse industrial needs.

Applications

Ideal for real-time PAA monitoring across sectors:

Food & beverage sanitization lines
Pharmaceutical sterilization processes
Water treatment disinfection systems
Industrial cleaning workflows
High-temperature (up to 60°C) production environments

Key Features

✅ 304 Stainless Steel & Corrosion Resistance

Core components built with 304 stainless steel (and 316L options)
Resists harsh chemicals, cleaning agents, and high-moisture environments
PTFE/PEEK coatings enhance long-term corrosion durability

✅ Dual Temperature Compatibility

Regular-temperature model: handles up to 45°C workflows
High-temperature model: supports 60°C high-temperature water systems

✅ Accurate & Fast Detection

Membrane current two-electrode system (measurement precision <3%)
Rapid response time (as quick as 1.5 minutes for high-concentration samples)

✅ Flexible Integration

Dual-channel flow cell (compatible with pH electrodes)
Multiple output signals (4-20mA/Modbus RS485) for easy system connection
Versatile installation (thread/flange) and 8mm quick-connect ports

✅ Reliable Protection

Sensor IP68, controller IP65/NEMA4X, and enclosure IP65 ratings
Withstands demanding industrial operating conditions

Technical Specifications (By Sensor Model)

Parameter	Regular Temperature Model (W781-AF304-DP10.1MA)	High Temperature Model (W781-AF304-DP9.3MA)
Measurement Range	0-200/2000/2%/5% ppm	0-200/2000/2% ppm
Core Material	304 stainless steel + 316L (sensor)	304 stainless steel + 316L (sensor)
Max Water Temp	45°C	60°C
Resolution	1-0.01 ppm (varies by range)	0.1/1/0.001 ppm (varies by range)
pH Range	1-8	1-8
Max Pressure	≤1.0 bar	≤1.0 bar
Response Time (T90)	~3.5min (10°C); ~1.5min (45°C)	~3.5min (10°C); ~1.5min (45°C)
Protection Class	Sensor IP68; Controller IP65/NEMA4X; Enclosure IP65	Sensor IP68; Controller IP65/NEMA4X; Enclosure IP65
Output Signal	4-20mA/Modbus RS485	4-20mA/Modbus RS485
Power Supply	105-235VAC; 24VDC±5%	105-235VAC; 24VDC±5%
Dimensions (H×W×D)	500×400×200mm	500×400×200mm

FAQ – Frequently Asked Questions

1. Where are your products manufactured?

Our products are proudly designed and manufactured in China, following international quality standards and certified processes.

2. Can you provide OEM/ODM services for international clients?

Yes, we offer customized solutions and private labeling to meet your brand’s needs worldwide.

3. Are your products compliant with international safety and quality standards?

Absolutely. Our products are tested to meet CE, RoHS, and other international certifications.

4. How do you handle shipping and delivery for overseas orders?

We cooperate with major international couriers to ensure fast and reliable delivery to your location.

5. Can I get product samples before placing a large order?

Yes, we provide samples so you can evaluate product quality before committing to bulk orders.

6. What is the typical lead time for production and delivery?

For standard products, we usually ship within 5–7 days after order confirmation. Customized products may take slightly longer.

7. How do you support clients after the purchase?

We offer 24/7 technical support, product guidance, and warranty service to ensure smooth operation.

8. Do you provide support for international clients after purchase?

Yes, we offer remote technical assistance, manuals in English, and prompt solutions to any issues, ensuring smooth use worldwide.

9. How can I place an order if I am located overseas?

You can contact our sales team directly via email or website inquiry. We provide professional guidance throughout the ordering process.

10. Why should I choose your company over other suppliers in China?

We combine over 30 years of manufacturing experience, advanced technology, strict quality control,

and global customer service to deliver reliable, high-quality solutions.
