Product Information

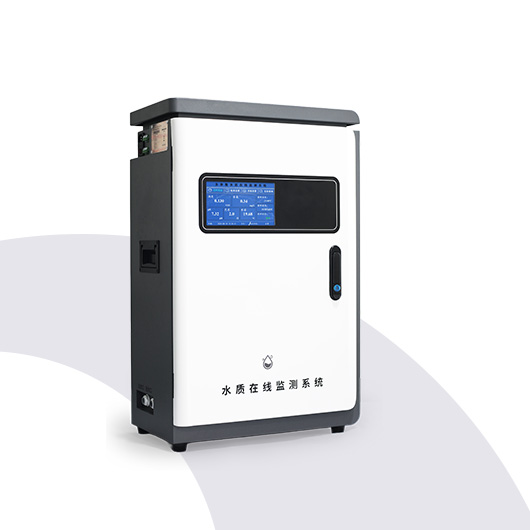

Indoor Wall-Mounted Multi-Parameter Water Quality Analyzer for Swimming Pool
The monitor features a high-sealing, water-electricity separated modular design, ensuring long-term stability by isolating electronics from water channels. Built-in automatic cleaning, internal temperature and humidity control, and role-based user management reduce maintenance, while optional remote control allows convenient adjustments.
Ideal for indoor pools in hotels, sports centers, schools, and recreational facilities, it provides comprehensive water quality supervision, preventing over-chlorination, microbial risks, clarity issues, delivering safe, clean, comfortable swimming environments.
Product Description
The W770-CPORT-DCC1 is a professional online monitor designed for drinking water quality supervision, providing reliable real-time measurement of key parameters:
Residual Chlorine (German Reiss membrane method)
pH
ORP (Oxidation-Reduction Potential)
Defoaming Turbidity
Temperature
Its modular and flexible design allows configuration of monitoring modules according to water quality requirements, delivering comprehensive data support for safe drinking water management.
Key Features
High-Sealing Water-Electric Separation Structure: Flip-top design ensures physical isolation of electronics and fluid channels, improving long-term operational stability.
Built-in LED Maintenance Lighting: Door-triggered illumination enables fast inspection in dark environments.
Flexible Modular Design: Modules can be customized based on monitoring needs.
Automatic Cleaning: Electrodes, turbidity, and colorimetric channels are auto-cleaned; cleaning cycle is adjustable; no cleaning solution required.
Comprehensive System Monitoring: Internal cabinet temperature & humidity control, operation logs, calibration records, and over-limit event alerts.
User Management & Remote Control: Role-based access (User/Administrator) and optional remote instrument control.
Data Management: Historical data storage (up to 1,000,000 records), water consumption statistics, trend analysis, USB export, and outage alarms.
Durable Housing: 1.5 mm steel plate with powder coating, double-layer PMMA window, IP56 protection rating.
Water-Saving Function: Timed water supply testing, with optional supply cut-off to reduce waste.
Technical Specifications
| Parameter Category | Specifications |
|---|---|
| Monitored Parameters | Residual Chlorine (Reiss Membrane), pH, ORP, Defoaming Turbidity, Temperature |
| Display | 7-inch HD Color Resistive Touch Screen (Optional 10-inch) |
| Supported Languages | Chinese, English |
| Power Supply | 105–235 VAC, 50±1 Hz; 9–36 VDC (Optional) |
| Operating Environment | 0–50°C, 0–85% RH (Non-condensing) |
| Storage Environment | 0–50°C, 0–90% RH (Non-condensing) |
| Sample Conditions | Temperature: 1–45°C; Flow: 300–500 mL/min (with flow statistics); Pressure ≤0.4 MPa |
| Data Output | RS485 (MODBUS); expandable to 4–20 mA or GPRS |
| Data Storage & Export | Up to 1,000,000 records; USB export |
| System Protection | Surge protection, power-off protection & auto-recovery, system diagnostics & alarms |
| System Monitoring | Cabinet temperature & humidity control, operation logs, calibration records, over-limit event recording |
| User Management | Role-based access (User / Administrator) |
| Automatic Cleaning | Electrodes, turbidity, color channels; cycle adjustable; no cleaning solution required |
| Timed Water Supply | Scheduled testing; supply cut-off optional to reduce water waste |
| Protection Level | IP56 |
| Installation | Wall-mounted |
| Power Consumption | 22 W |
| Housing Material | 1.5 mm steel plate with powder coating; PMMA viewing window |
| Dimensions (H×W×D) | 700 × 450 × 280 mm |
