German-made CH10 Residual Chlorine Sensor for High Chlorine Concentrations upto 2000ppm in Process Water

Product Menu

1/1

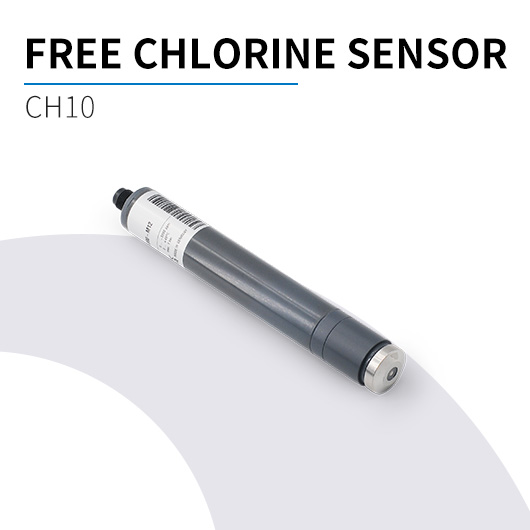

German-made CH10 Residual Chlorine Sensor for High Chlorine Concentrations upto 2000ppm in Process Water

German-made CH10 free chlorine sensor uses a membrane-covered amperometric 2-electrode system to measure pH-dependent free chlorine, tailored for high concentrations in industrial process water. It works with inorganic chlorinating agents (NaOCl, Ca(OCl)₂, chlorine gas, membrane cell electrolytic chlorine) and requires constant pH (5.0–8.0).
Boasting surfactant resistance and mechanical durability, it features automatic temperature compensation, IP65/IP68 protection, and flexible versions (analog/4-20mA/digital/Modbus RTU). No zero-point adjustment is needed—calibrate via DPD-1 or iodometry. Operable at 15–30 L/h and specified pressures，it’s reliable for high-chlorine water disinfection control in industrial settings.

Model CH10

Inquire by Email

Consult now

Detail

Special features

• suitable for high chlorine concentrations of up to 2000 ppm

• mechanically robust membrane system

• tolerates surfactants

• high tolerance to chemicals

• tolerates polluted measuring water

Applications

Washing of fruit, vegetables and poultry, service and process water

Ambient conditions

• stable pH value

• max. temperature: 45 °C

• max. pressure: 1 bar

Technical Specification

Measurement Parameters	Free chlorine, pH dependent
Measuring Ranges/Resolution	20…2000 ppm: 1ppm; 0.05%...0.2% (500…2000 ppm):100ppm
Response time	T90≈8 min.
Measuring water temperature	0... + 45 °C (no ice crystals in the measuring water)
Ambient temperature	0... + 55 °C
Temperature compensation	Automatically, by an integrated temperature sensor Response time t90 = approx. 8 min. Max. change in temperature: 5 °C per hour, sudden temperature changes must be avoided
Max. allowed working pressure	Operation with retaining ring in FLC: - 0.5 bar - no pressure impulses and/or vibrations

	Operation with retaining ringin FLC: - 1 bar - no pressure surges and/or vibrations

Flow rate(face velocity)	approx. 15-30 l/h in FLC, small flow rate dependence is given
pH - range	pH 5 – pH 8, pay attention to the dissociation equilibrium HOCL
Run - in time	First start-up approx. 11 h
Zero point adjustment	Not necessary
Protection class	5-pole M12 plug-on flange: IP68 2-pole terminal with mA-hood: IP65
Material	Elastomer membrane, PVC-U, PEEK
