Product Overview

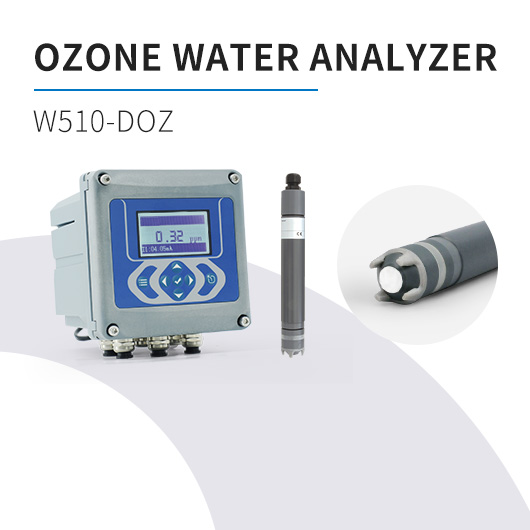

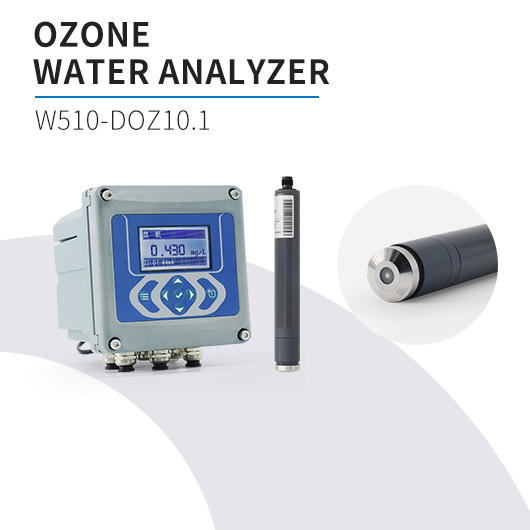

The online ozone analyzer (hereinafter referred to as the instrument) adopts a sensor imported directly from Germany. The detection part uses special osmotic membrane technology, which has the characteristics of resisting interference from chemicals (mainly surfactants), reducing pH dependence, etc. The sensor is not restricted by water quality conditions, has a fast response speed, stable working performance, low cost, and requires little maintenance, providing users with reliable and accurate data.
The instrument is equipped with an LCD liquid crystal display screen and can automatically identify measured parameters, including: residual chlorine/total chlorine/chlorine dioxide, ozone, peracetic acid, hydrogen peroxide, free bromine. It has current output and RS485 output, and the measurement range can be freely set. It also has high and low limit alarm prompts, three-way relay control switches, and an adjustable hysteresis range, as well as multiple automatic calibration methods for the electrode.

Working Principle

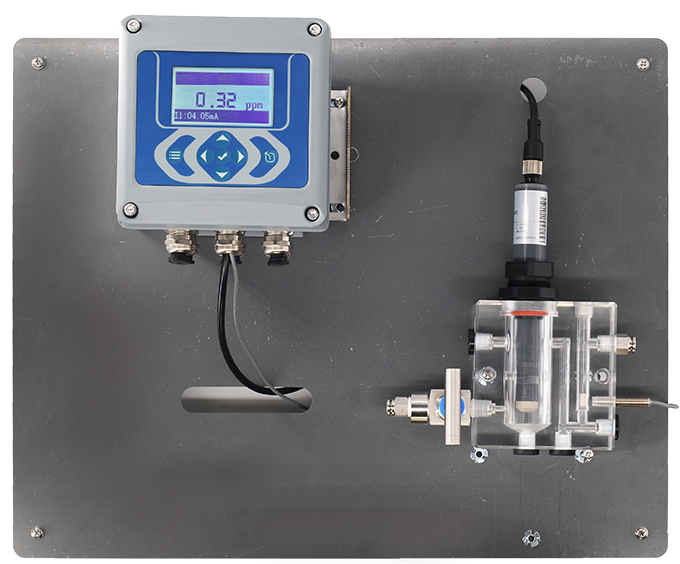

The entire measurement system mainly consists of two parts: the instrument and the sensor. The instrument displays the ozone value (main measured value), the pH value of the aqueous solution (a pH electrode is required to be optional), and the working status. It outputs signals such as analog quantity, digital quantity, and switching quantity.
The sensor adopts the original imported RG brand from Germany and works on the principle of the constant current method of the three (double) - electrode film - covered type, which has the characteristics of anti - interference and anti - pollution.

Application Fields

  • Drinking water disinfection and purification;

  • Swimming pool water disinfection;

  • Surface disinfection of food and beverage packaging containers;

  • Barreled water disinfection, etc.

Functional Features

  1. Dual-channel access, which can be configured according to needs.

  2. Achieve plug - and - play for sensors. The installation and replacement of electrodes are fast and convenient.

  3. The operation interface is simple, which can reduce operational errors and ensure reliable results.

  4. Visual operation on the LCD screen with a rich and comprehensive interface content.

  5. It has multiple data output methods such as 4 - 20mA and MODBUS RS485.

  6. The controller supports wall-mounted installation/panel installation/clamp-tube installation.

  7. Made of aluminum alloy material, it has high strength, oxidation resistance, and corrosion resistance, enhancing texture and market attractiveness.

Technical Parameters

Specification
Detailed information
Measurement
Measurement Parameters
Ozone, pH (optional)
Measuring Ranges
0.005～0.500mg/L;0.005～2.000mg/L;0.05～5.00mg/L;0.05～10.00mg/L;0.05～20.00mg/L
Lower Limit of Measurement
0.005mg/L
Resolution
0.001～0.01mg/L（depending on the measuring range）
Accuracy (@25℃, pH 7.2)
In the measurement range of 0 - 1ppm, when calibrated at 0.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one）
In the measurement range of 1 - 2ppm, when calibrated at 1.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one)
In the measurement range of 0 - 10ppm, when calibrated at 5.0ppm, the error is ±2% of the measured value or ±0.3ppm.（take the larger one)
In the measurement range of 10 - 20ppm, when calibrated at 15.0ppm, the error is ±5% of the measured value or ±0.5ppm.（take the larger one)
Response time
The fastest T90 ≈ 15 seconds
Drift
Approximately - 1% per month (after calibration at 25℃, pH = 7.2)
PH range
2.0～11.0
Maintenance Cycle
≥90days
Conductivity Range
10μS/cm～50mS/cm
Temperature range
5~50℃
Electrical
Display
LCD liquid - crystal screen
Power supply
105～235VAC，50±1Hz/24VDC±5%(DC is optional)
Power
≤12W（including the sensor）
Analog Output
Two ways of analog outputs (load resistance < 500Ω)
Digital output
RS485 interface, MODBUS RTU protocol
Relay output
Three-way relay   5A 250VAC，5A 30VDC
Relay output
Three-way relay 3A 250VAC; 3A 28VDC or 120VAC
Physical prosperities
Material

Bottom shell: Cast aluminum with plastic spray coating

Top cover: PA66 + 30GF with paint coating

Size
145*145*174mm（H*W*D）
Weight
1.8kg（Not including the sensor）
Waterway interface
2-inch or 3-inch hose （custom made）
Ambient performance
Flow rate
In flow chamber：250～500mL/min
Protection level
IP65
Water pressure
≤6 bar（matching a pressure - reducing valve with the instrument）
Working humidity
<90%，no condensation
Working temperature
Instrument：-15℃～50℃；senseor water temperature：0.1℃～50℃
Storage temperature
Instrument：-20°C～60°C；sensor：0.1°C～55°C
