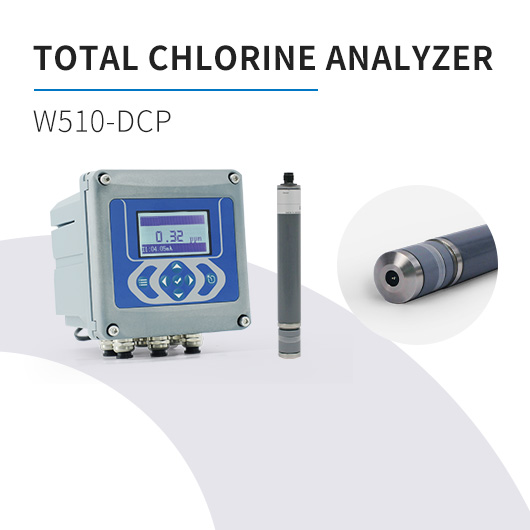

W510-DCP Total Chlorine analyzer
Product Menu
Humidity probe &sensor
Humidity transmitter & controller
Dew point transmitter & controller
Moisture transmitter & controller
Water quality electrode & sensor
Water quality analyzer & controller
W510-DCP Total Chlorine analyzer
Consult now
Inquire by Email
DetailDownload

Product Overview

Online Total Chlorine Analyzer (hereinafter referred to as the instrument) is equipped with a sensor imported directly from Germany. The detection part adopts a special osmotic membrane technology, which has the characteristics of resisting interference from chemicals (mainly surfactants) and reducing pH dependence. The sensor is not restricted by water quality conditions, features a fast response speed, stable working performance, low cost, and requires little maintenance, providing users with reliable and accurate data.
The instrument is equipped with an LCD liquid crystal display screen and can automatically identify measured parameters including residual chlorine/total chlorine/chlorine dioxide, ozone, peracetic acid, hydrogen peroxide, and free bromine. It has current output and RS485 output, allows free setting of the measurement range, provides high and low limit alarm prompts, three sets of relay control switches, and an adjustable hysteresis range. The electrode has multiple automatic calibration methods.
Working Principle: The entire measurement system mainly consists of two parts: the instrument and the sensor. The instrument displays the total chlorine value (main measured value), the pH value of the aqueous solution (a pH electrode needs to be selected optionally), and the working status. It outputs signals such as analog quantity, digital quantity, and switch quantity. The sensor is of the original imported RG brand from Germany and works on the principle of the film-covered three (dual) - electrode constant current method, with the characteristics of anti - interference and anti - pollution. The sensor is not restricted by water quality conditions and can be applied in various industries.
Application Fields:

  • Tap water: 0 - 2mg/L

  • Swimming pool water: 0 - 5mg/L for the measurement of cyanuric acid

  • Medical water: 0 - 0.5mg/L; conductivity as low as 10μS/cm

  • Sewage treatment: 0 - 20mg/L

  • Seawater: conductivity up to 50mS/cm

  • High - salt seawater: brine or seawater with a concentration greater than 3.5% (>50mS), and the salt content can be up to approximately 26%

Functional Features:

  1. Dual-channel access for configuration according to requirements.

  2. Enables plug - and - play of sensors, making electrode installation and replacement quick and convenient.

  3. The interface has a simple operation, reducing operational errors and ensuring reliable results.

  4. Visual operation on the LCD screen with a rich and comprehensive interface.

  5. Equipped with multiple data output methods such as 4 - 20mA and MODBUS RS485.

  6. The controller supports wall - mounting / panel - mounting / pipe - clip mounting.

  7. Made of aluminum alloy, it has high strength, oxidation resistance, and corrosion resistance, enhancing its texture and market attractiveness.

Technical Parameters

Specification
Detailed information
Measurement
Measurement Parameters
Total Chlorine, pH (optional)
Measuring Ranges
0.005～0.500mg/L; 0.005～2.000mg/L; 0.05～5.00mg/L;0.05～10.00mg/L; 0.05～20.00mg/L
Lower Limit of Measurement
0.005mg/L(depending on the electrode)
Resolution
0.001mg/L（depending on the measuring range）
Accuracy (@25℃, pH 7.2)
In the measurement range of 0 - 1ppm, when calibrated at 0.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one）
In the measurement range of 1 - 2ppm, when calibrated at 1.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one)
In the measurement range of 0 - 10ppm, when calibrated at 5.0ppm, the error is ±2% of the measured value or ±0.3ppm.（take the larger one)
In the measurement range of 10 - 20ppm, when calibrated at 15.0ppm, the error is ±5% of the measured value or ±0.5ppm.（take the larger one)
Response time
T90≈2 - 3 minutes
Repeatability
≤3%
Drift
Approximately - 1% per month (after calibration at 25℃ and pH = 7.2)
PH range
4.0 - 12.0 (depending on the electrode)
Maintenance Cycle
The replacement cycle of the membrane cap is one year (depending on water quality)
Flow rate
In the flow chamber: 250 - 500mL/min
Operating temperature
0 - 45℃
Electrical
Display
LCD liquid - crystal screen

Power supply
105～235VAC，50±1Hz/24VDC±5%(DC is optional)

Power
≤12W（including the sensor）

Analog Output
Two ways of analog outputs (load resistance < 500Ω)

Digital output
RS485 interface, MODBUS RTU protocol

Relay output
Three-way relay   5A 250VAC，5A 30VDC
Physical prosperities
Material

Bottom shell: Cast aluminum with plastic spray coating

Top cover: PA66 + 30GF with paint coating

Size
145*145*174mm（H*W*D）
Weight
1.8kg（Not including the sensor）
Waterway interface
2-inch or 3-inch hose （custom made）
Ambient performance
Flow rate
In flow chamber：250～500mL/min
Protection level
IP65
Water pressure
≤6 bar（matching a pressure - reducing valve with the instrument）
Working humidity
<90%，no condensation
Working temperature
Instrument：-15℃～50℃；senseor water temperature：0.1℃～45℃
Storage temperature
Instrument：-20°C～60°C；sensor：0.1°C～55°C
