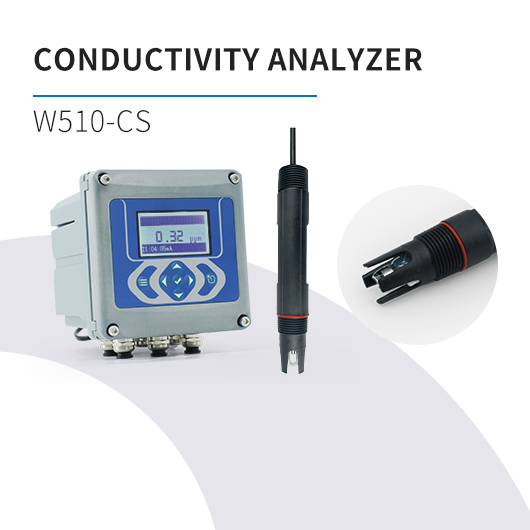

W510-CS Conductivity analyzer for Tap Water
Consult now
Inquire by Email
DetailDownload

Product Overview

Online Conductivity Analyzer (hereinafter referred to as the instrument). The entire measurement system mainly consists of two parts: the instrument and the sensor. The instrument is equipped with an LCD liquid crystal display screen and can automatically identify measured parameters including residual chlorine/total chlorine/chlorine dioxide, ozone, peracetic acid, hydrogen peroxide, free bromine, turbidity, low turbidity, suspended solids, dissolved oxygen, pH, ORP, and conductivity. It can be connected to digital sensors or two - wire 4 - 20mA signal sensors. Meanwhile, according to requirements, it can choose a single - channel configuration to connect one sensor or a dual - channel configuration to connect two sensors, reducing the cost of the controller and the installation space.
The conductivity sensor is a glass - platinum electrode. The measurement principle of the sensor is to place two discs (conductivity discs) in the sample solution. By applying a voltage between the two discs, the current can be measured. Generally, the voltage is in the form of a sine wave. The conductivity is determined by Ohm's law based on the voltage and current values.
Application Fields:

  • Wastewater treatment plants

  • Water treatment plants

  • Water stations

  • Surface water

  • Aquaculture industry

  • Conductivity monitoring in industrial fields and others

Functional Features

  1. Dual-channel access, allowing configuration based on your needs.

  2. Enables plug - and - play of sensors, facilitating quick and easy installation and replacement of electrodes.

  3. Features a simple - to - operate interface, minimizing operational errors and ensuring reliable results.

  4. Offers visual operation on the LCD screen with a rich and comprehensive interface.

  5. Provides multiple data output options, including 4 - 20mA and MODBUS RS485.

  6. The transmitter supports wall - mounting, panel - mounting, or pipe - clip mounting.

  7. Crafted from aluminum alloy, it offers high strength, oxidation resistance, and corrosion resistance, enhancing its texture and market attractiveness.

Technical Parameters

SpecificationDetailed information
Measurement
Measurement ParametersConductivity
Measuring Ranges
Conductivity (316L):0.00 - 40.00 μS/cm (K = 0.01);0.0 - 400.0 μS/cm (K = 0.1);Conductivity (Glass Platinum/Graphite): 10 - 20000 μS/cm (K = 1.0);Conductivity (Titanium Alloy): 100 - 200.0 mS/cm (K = 10);Temperature: 0 - 80°C (without freezing)
ResolutionConductivity: 0.001 μS/cm to 0.1 mS/cm; Temperature: 0.01 °C
Accuracy
Conductivity: ±1.5% of full scale (F.S); Temperature: ±0.5°C
Pressure range≤0.4Mpa
Response time≤10s (Reaching 95% of the end value) (After stirring)
MaterialShell: PPS/316L/titanium alloy, glassy platinum electrode or graphite electrode
Protection levelIP65
Cable lengthstandard：5m
Installation threadFixed at the upper/lower end with NPT 3/4.
Weight0.2KG
Electrical
DisplayLCD liquid - crystal screen
Power supply105～235VAC，50±1Hz/24VDC±5%(DC is optional)
Power≤12W（including the sensor）
Analog OutputTwo ways of analog outputs (load resistance < 500Ω)
Digital outputRS485 interface, MODBUS RTU protocol
Relay outputThree-way relay 5A 250VAC，5A 30VDC
Physical prosperitiesMaterial
Bottom shell: Cast aluminum with plastic spray coating Top cover: PA66 + 30GF with paint coating
Size145*145*174mm（H*W*D）
Weight1.8kg（Not including the sensor）
Waterway interface2-inch or 3-inch hose （custom made）
Ambient performanceFlow rateIn flow chamber：250～500mL/min
Protection levelIP65
Water pressure≤6 bar（matching a pressure - reducing valve with the instrument）
Working humidity<90%，no condensation
Working temperatureInstrument：-15℃～50℃；senseor water temperature：0.1℃～45℃（0.1°C to 70°C for special applications）
Storage temperatureInstrument：-20°C～60°C；sensor：0.1°C～55°C
